01
SE laser engraving machine
1) Engraving area: 1, 200 x 900mm
2) Laser power: 80W
3) Laser type: CO2 laser tube
4) Engraving speed: 0~1000mm/s
5) Cutting speed: 0~600mm/s
6) Resetting positioning accuracy: <0.01mm
7) Cutting depth: Acrylic 0-25mm
8) Minimum shaping character: 1.5 x 1.5mm
9) Power supply: 220V± 10% 50Hz or 110V± 10% 60Hz
10) Gross power: 1, 600W
11) Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD
12) Graphic format supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF
13) Engraver for curve surfaces: We can add an rotary attachment on the laser engrave/cutting machine, then the machine can engrave on cylinder
14) Water cooling: (Yes/No) Yes
15) Maximum height of materials to engrave (mm): 280mm (up and down by motor)
16) Laser tube (life hours): 1, 500 hours
17) Equipment dimensions: 1, 700 x 1, 350 x 1, 100mm
18) Assistant equipment: Water pump, exhaust fan, aluminum alloy worktable
19) Optional spare parts: Metal laser tube, rotary system, cooling water system
20) Recommended spare parts/consumables: Laser tube and lens
Metal and Nonmetal Laser Cutting  Machine 1325MC
02
Metal and Nonmetal Laser Cutting Machine 1325MC
Features: 1. Hig quality and powerful 120w-180w co2 laser tube 2. High precision laser head, small cutting seam, high precision. 3. Laser cutting head is equipted with metal cutting follow-up control system,can guarantee parfocal cutting processing. 4. Imported ball screw and high precision linear guideway,guarantee steady driving system. 5. Japan servo driving system,increase the cutting speed,make the function steadier. 6. Imported reflector and focus lens. 7. USB connector,wide using range. 8. Support the array output and the fixed point output 9. High power exhaust system 10.High pewer water cooling system

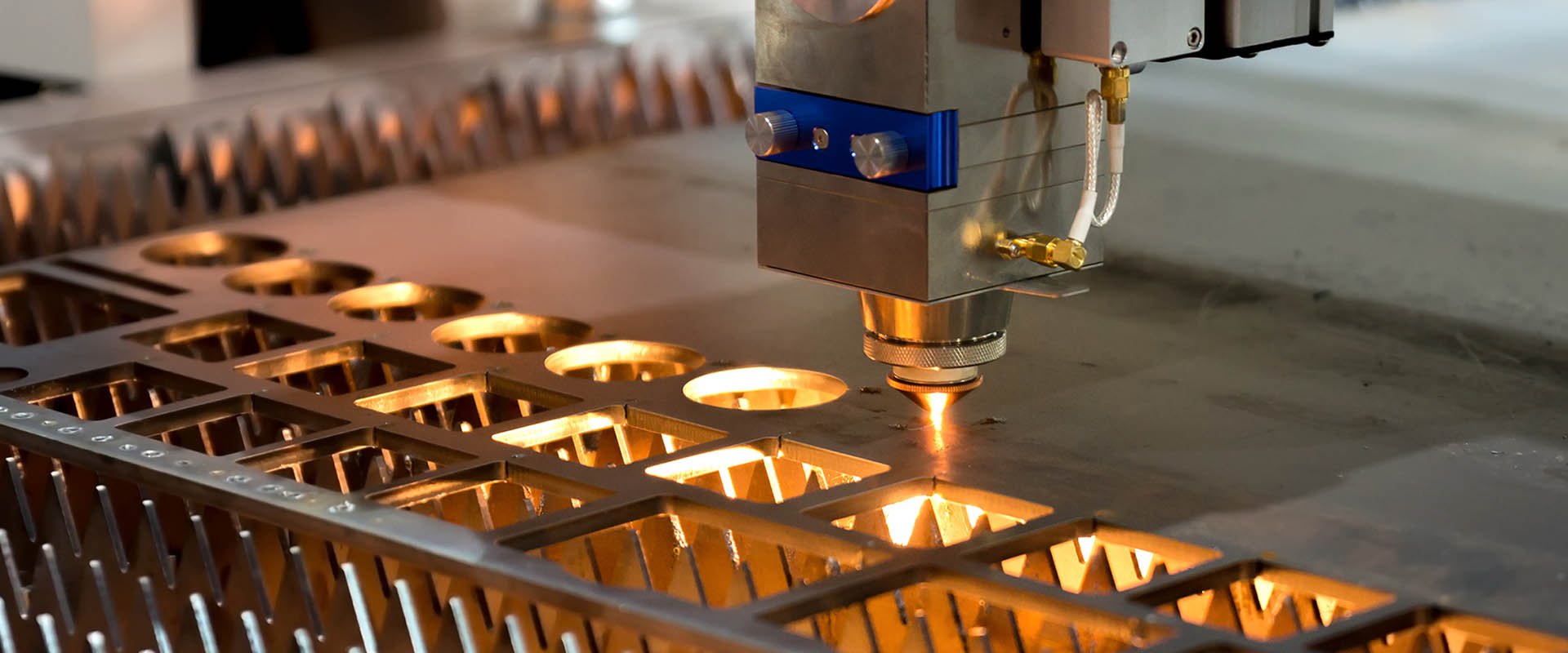

Fiber laser cutter
03
Fiber laser cutter
1. Stability and reliability for light path system and control system. 2. Fiber laser has high and stable function and lifespan which is over 100000 hours. 3. Higher cutting quality and efficiency with cutting speed being with perfect cutting edge. 4. High performance reducer, gear and rack;Japanese Imported Panasonic Servo Motor & Driving System 5.auto feeding wheel design for materials feeding
04

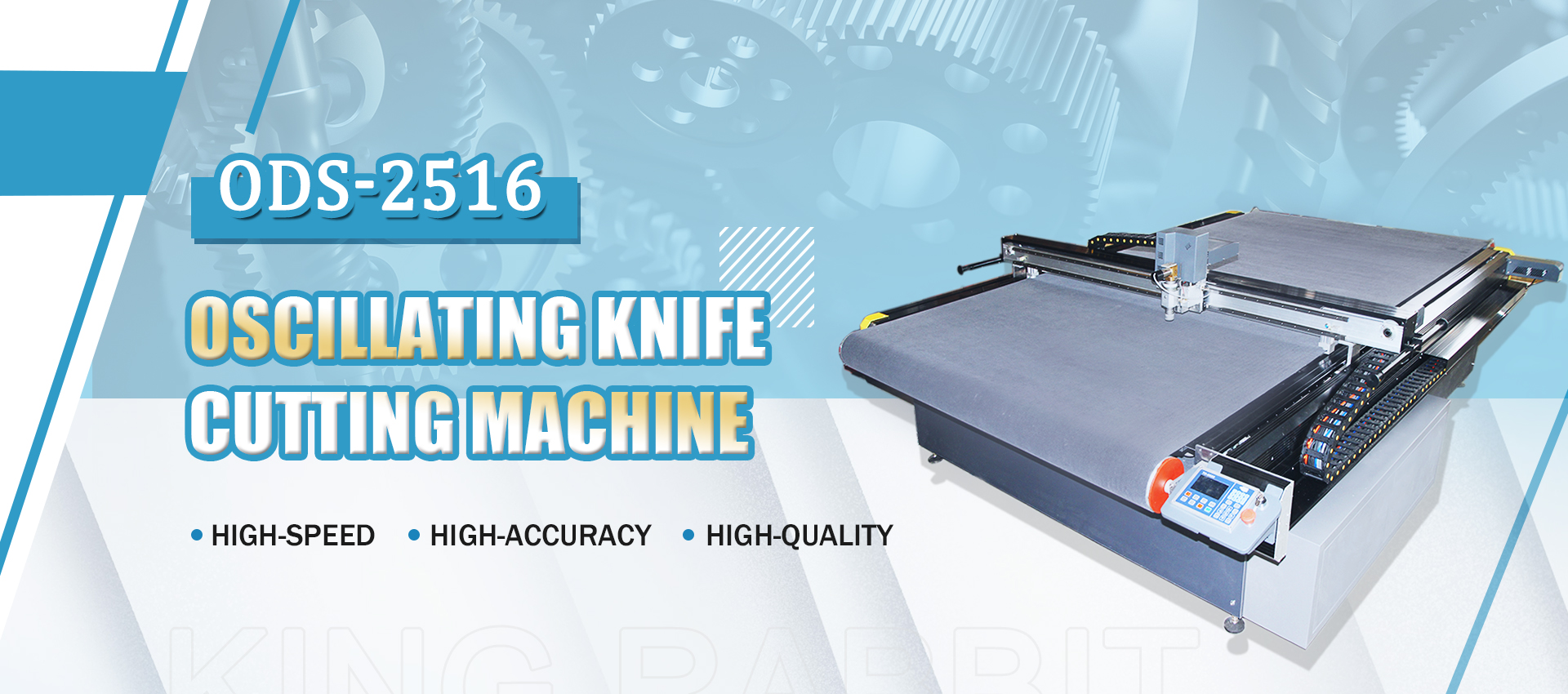

Digtal Cutter/OsciallTing Knife Cutting Machine
Technical parameters / model Ods1511 Ods2516 Ods3020
Multi-function cutting head can replace the vibration knife, half knife, the whole knife, oblique knife, pressure wheel and other tools
Tool configuration a variety of cutting tools, pressure wheel, pen, cross positioning laser
Safe configuration high sensitivity infrared sensor (optional)
Moving up to 1200mm / s
Cutting speed up to 800mm / s (according to different cutting material set)
Digtal Cutter/OsciallTing Knife Cutting Machine
