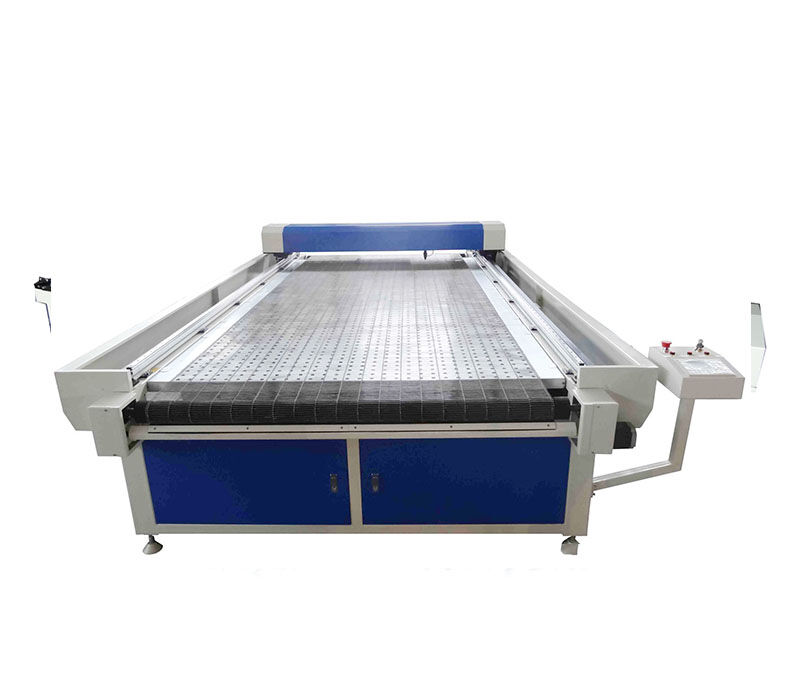

Auto-feeding Laser Flatbed
+86-531-86986670
hx_vicky@hxlaser.com(Vicky)
hx_bob@hxlaser.com(Bob)
Quanjing Hengzhan Business Mansion 607#,
West End of Huayuan Road, Lixia District, Jinan City
CONTACT US
MESSAGE
  MAIN PARAMETERS
ParameterHX- 1525Z
Working area                                         1500 x 2500mm
Max auto-feeding width  1650mm
Laser power80W/100W/130W/150W
Laser typeCO2 Laser tube
Feeding speed1-300mm/s
Feeding lengthLimitless
Cutting Speed0-200mm/s
Resetting positioning accuracy<0.01mm
Cutting DepthAcrylic 0~25mm
Maximum forming characterEnglish:1.5 x 1.5mm
Power supply220V±10% 50HZ or 110V±10% 60HZ
Software supportedArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported.PLT、DXF、BMP、JPG、GIF、PGN、TIF
Water CoolingYes
Laser Tube (life hours)1500 hours
Assistant EquipmentWater  pump           Exhaust Fan                             aluminium alloyworktable
Optional spare partsWater cooling system
Recommended Spare Parts/ConsumablesLaser Tube and Lens
Dimension3130 x 1860 x 960mm
MAIN APPLICATION

Features:
Auto-feeding system for continuous and automatic cutting process
Vacuum exhaust absorption worktable
Faster speed, smooth cutting and small joint
Totally enclosed lightway, powerful security
Imported linear guideway, higher precision

Application:
Clothing cutting
The machine is widely used in cutting acrylic, synthetic glass, wood, handicraft articles of large surface area
