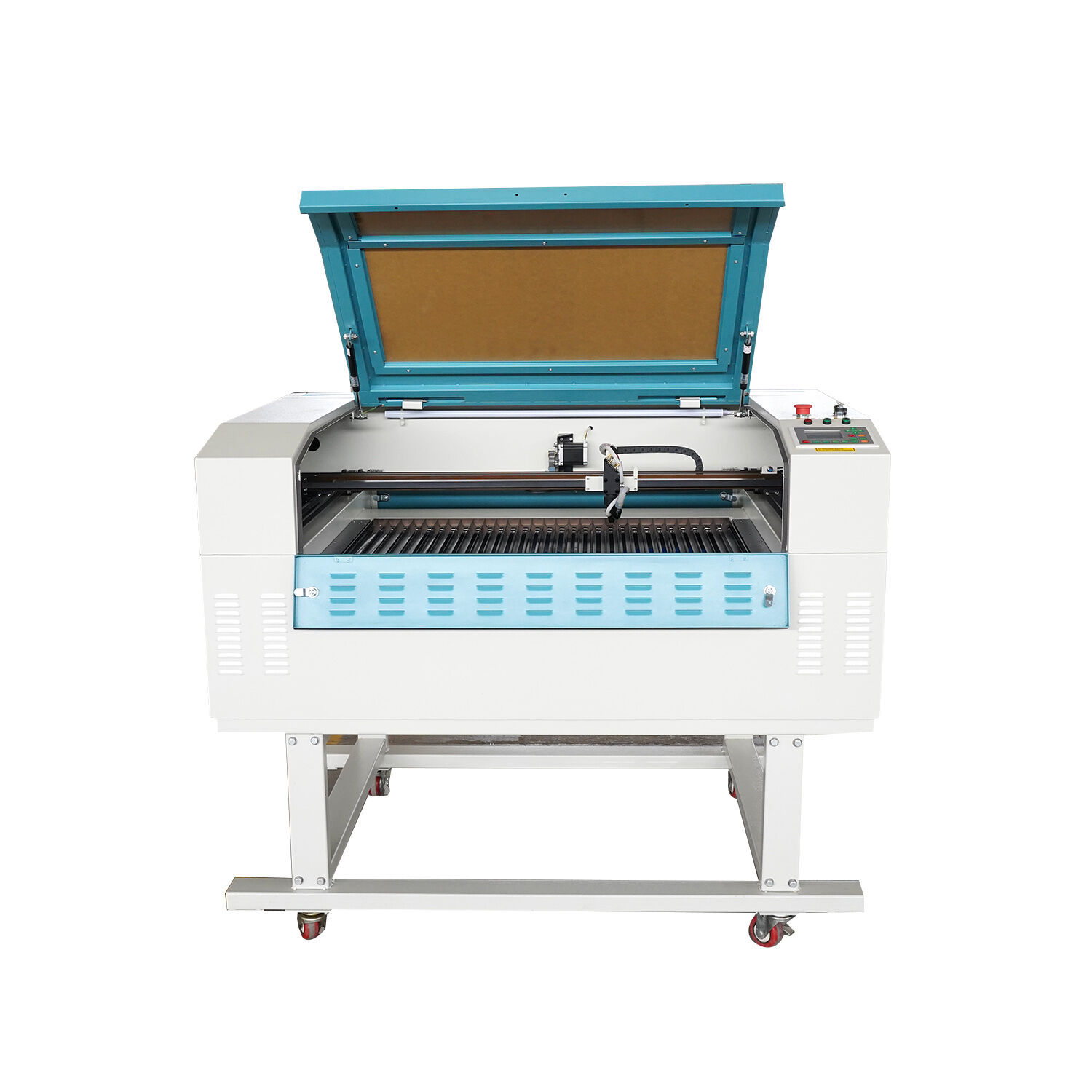

Toys co2 laser cutting engraving machine for nonmetals
+86-531-86986670
hx_vicky@hxlaser.com(Vicky)
hx_bob@hxlaser.com(Bob)
Quanjing Hengzhan Business Mansion 607#,
West End of Huayuan Road, Lixia District, Jinan City
  MAIN PARAMETERS
Type HX-3050SC HX-6090SCG HX-1290SCHX-1610SG
Laser power40w/60W60w/80W80w/100W/120W/150W
Engraving Area (mm)300 x 500mm600 x 900mm900 x 1200mm1000 x 1600mm
Gross power800w1200w1500w1800W / 2000W
Laser typeCO2 Laser tube
Cutting depthacryl 0-20mm
Engraving speed0-1000mm/s
Cutting speed0-600mm/s
Resetting positioning accuracy<0.015mm
Maximum forming character1.5 x 1.5mm
Power supply220V±10% 50HZ or 110V±10% 60HZ
Software supportedArtcut, CorelDraw, PhotoShop, AutoCAD
Graphic format supportedPLT、DXF、BMP、JPG、GIF、PGN、TIF
Engraver for curve surfaceRotary attachment can be added
Water Cooling (Yes/No)Yes
Laser tube(life hours)1500-10000 hours
Assistant EquipmentWater pump, exaust fan, aluminum alloy worktable
Optional Spare PartsRed dot pointer, Rotary, water cooling system
Recommended Spare Parts/ConsumablesLaser Tube and Lens
MAIN APPLICATION

It has high performance. the engraving surface is smooth and materials have no morph . this significantly reduces the difficulty of post-processing. The high resolution of the machine make the details carving possible. This machine coming with Rotary system and up-down system can carving three-dimensional objects perfectly.
Our SC split laser engraving machine can memorize the starting position and go back to the zero point precisely. Water pump, exhaust fan and aluminum alloy worktable are installed to give outstanding working performance.
