Oscillating knife cutting
+86-531-86986670
hx_vicky@hxlaser.com(Vicky)
hx_bob@hxlaser.com(Bob)
Quanjing Hengzhan Business Mansion 607#,
West End of Huayuan Road, Lixia District, Jinan City
  MAIN PARAMETERS

 Technical parameters/model

 ODS-1511

 ODS-2516

 ODS-3020

 Multi-function cutting head

Change Oscillating knife, half knife, full knife, inclined knife, pinch roller and various kinds of tools

Tool configuration

Various kinds of cutting tolls, pinch roller, pen, cross positioning laser

Security configuration

High sensitivity infrared ray interaction (selected)

Movement speed

1200mm/s     Maximum 1200mm/s

Cutting speed

Maximum 800mm/s (set according to different cutting materials)

Cutting material

Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, etc.

Cutting thickness

Maximum 5-mm (set according to different materials)

Material fixing method

High power vacuum absorption and intellectual partition

Repeated positioning accuracy

Maximum 0.01mm

Mechanical Precision

Maximum 0.02mm

Drive system

Steel wire synchronous belt , AC servo motor, linear guideway

Control system

 digit RISC core CPU + large scale programmable logic array

 Operating mode

 operation platform + data output control software

 (operation platform can be divided into connected and separated parts)

 Display mode

 Chinese and English liquid crystal touch screen

Data transmission method

Ethernet

Instruction system

HPGL compatible format

Buffer capacity

Standard 4GB

Rated power

11KW

12KW

14KW

Maximum working dimensions

1500*1100

2500*1600

3050*2050

Rated voltage

380V


MAIN APPLICATION

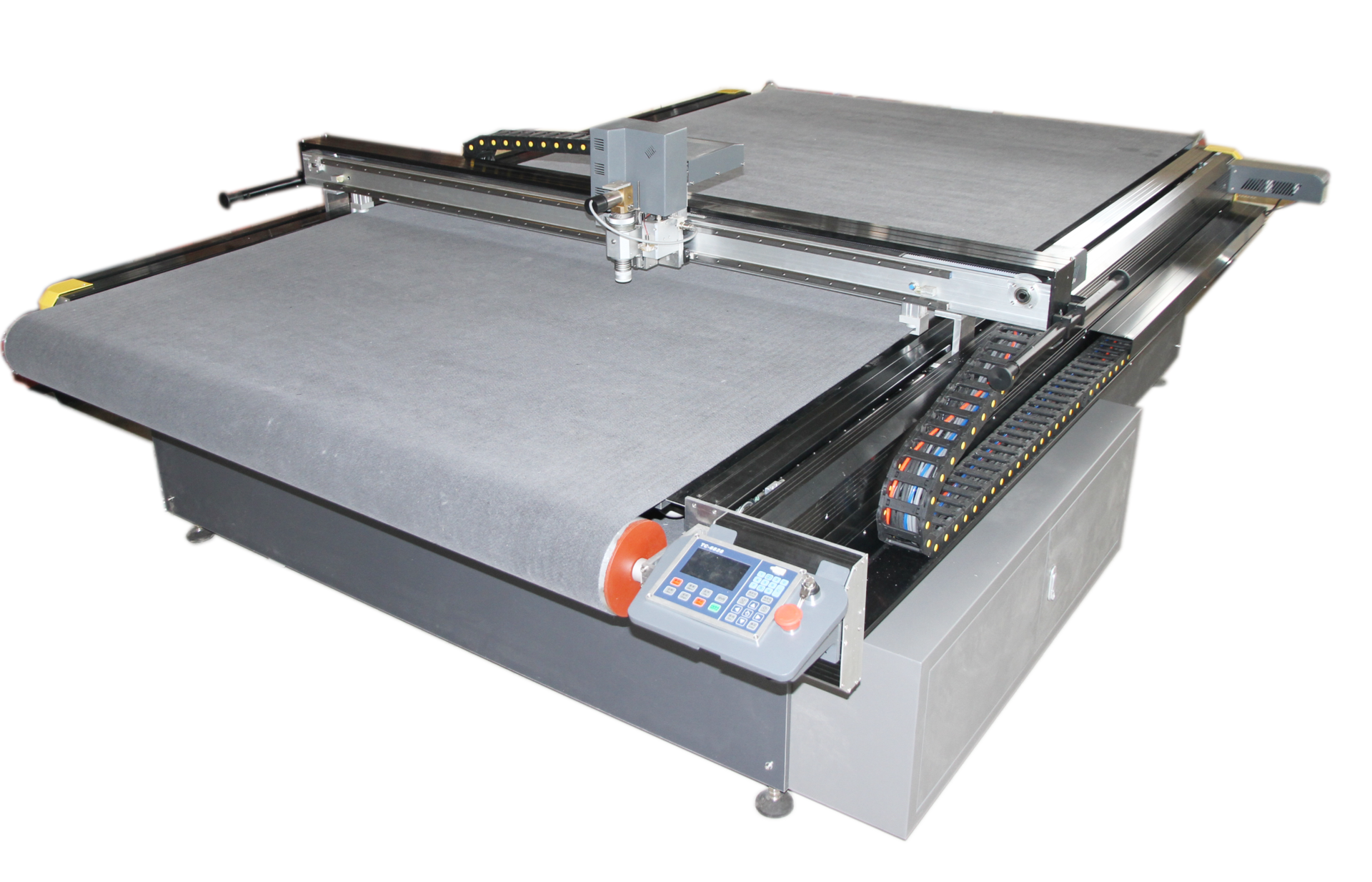

Oscillating knife cutting machine is a high-speed, high-accuracy, high-quality industrial digital control cutting machine developed by JINAN KING RABBIT TECHNOLOGY DEVELOPMENT CO.,LTD.  The development of Oscillating
 knife cutting machine adheres to the development theory of learning, absorption, creation and improvement of JINAN KING RABBIT. After several years of hard
 study and learning from advanced oscillating cutting technology of foreign advanced plants, we create and invent several patents, and on the basis of which,
we developed oscillating cutting machine. This machine is equipped with Oscillating knife, inclined knife, pinch roller, half knife, and pull knife, cross laser, pen
and various kinds of tools. We have 1511, 2516, 3020 specifications and products of carton packing, leather furniture, automotive trim, advertisement
identification categories. We can also customize cutters of special usage according to customer requirements.
